Product Details
＋

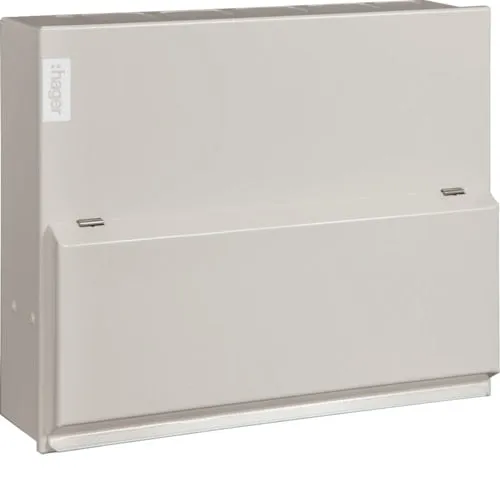

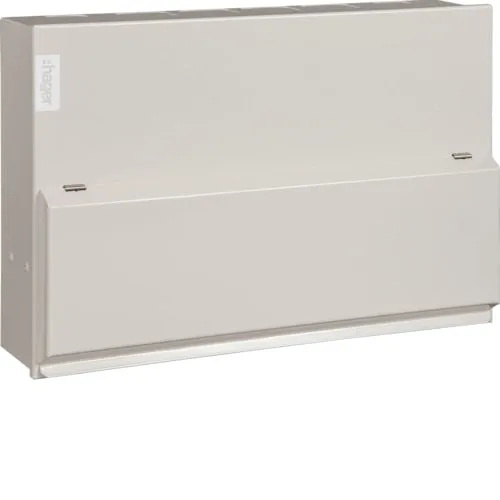

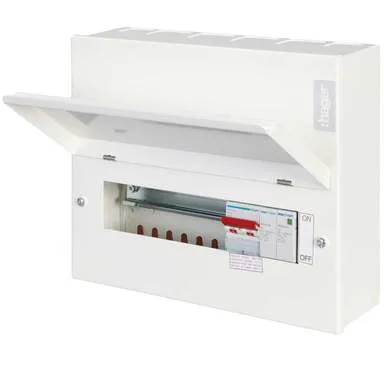

Hager 8 Way 100A Isolator Incomer Metal Clad Consumer Unit with Type 2 SPD

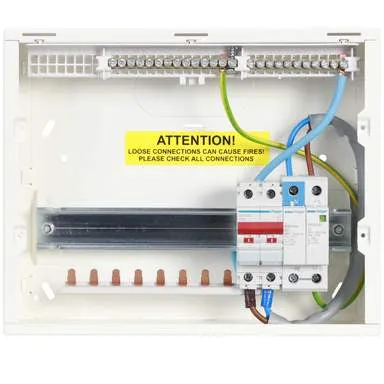

- Supplied with a full metal DIN rail, 100A switch disconnector incomer and a full complement of earth and neutral terminals along with marking labels, busbar and instructions
- All Design 10 consumer units contain top, bottom and rear knockouts
- Type 2 SPD fitted
- Recommended for use with TT systems when utilising RCBO on outgoing circuits
- Conforms to BS EN 61439-3 Including Annex ZB (16kA rating)
- Current Rating : 100A
- Dimensions : (H)246 mm x (W)299 mm x (D)83 mm
- Guarantee : 1 Year
- Incoming Device : 100A Isolator
- Material : Steel
- Mounting : Surface
- Number of Modules : 12
- Number of Outgoing Ways : 8
- Standards BS EN 61439-3
- Surge Protection Fitted : Yes
- Voltage Rating 230V
