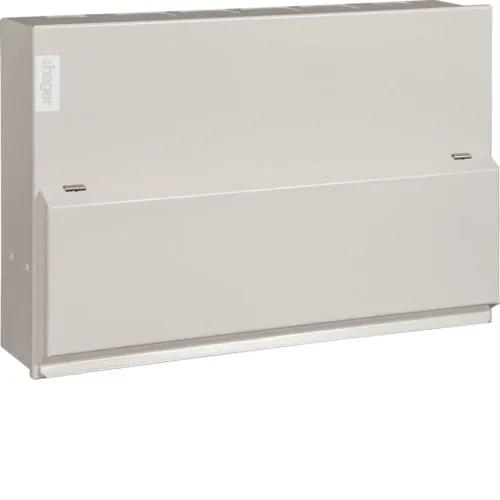

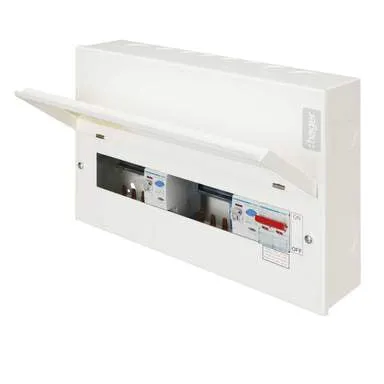

Hager 5 5 Dual 100A RCD Split Load Metal Clad Consumer Unit with Round Knockouts

• 5 5 way split load consumer unit
• Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator
• Selection of round knockouts
• Design 10 consumer units come with top, bottom, rear knockouts and a meter tail cable entry plate
• Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
• Design 10 board has ample cable space available even when RCBOs are fitted. The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
• Conforms to BS EN 61439-3 Including Annex ZB
• Board Configuration 5 5
• Cable Entry Selection of Round Knockouts
• Colour White
• Current Rating 100A
• Dimensions (H)246 mm x (W)370 mm x (D)100 mm

• Door Type Top Hinged
• Guarantee 1 Years
• Incoming Device 100A Isolator

• Incoming Terminal Capacity 50 mm²
• Knockouts Round
• Material Steel
• Mounting Surface
• Number of Modules 16
• Number of Outgoing Ways 10
• Product Range Design 10

• Rcd Rating 100A
• Rcd Type A
• Standards BS EN 61439-3
• Surge Protection Fitted No
• Surge Protection Ready No
• Tripping Sensitivity 30mA
• Voltage Rating 230V

• Weight 4.7kg
