Product Details
＋

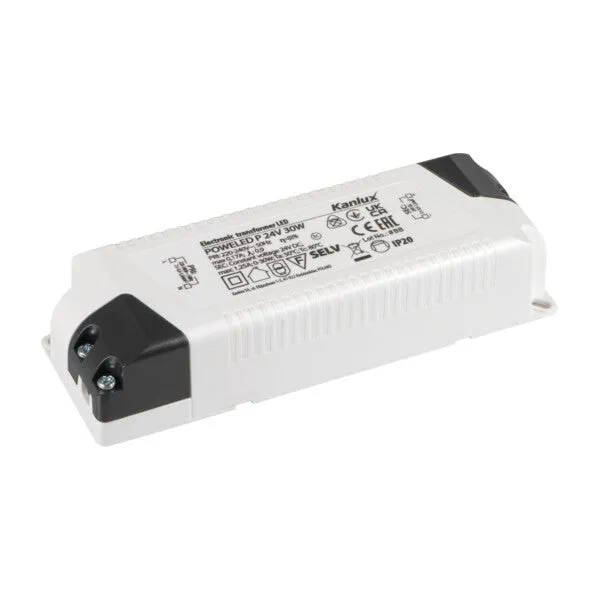

Kanlux POWELED P 24V is an electronic constant-voltage power supply unit. It is used for powering LED belts such as LEDS 24V.
Specification
| General description | EAN13: 5905339268150 |
|---|---|
| Colour: white | |
| Material: Plastic | |
| Weight and dimensions | Height [mm]: 32 |
| Width [mm]: 48 | |
| Length [mm]: 145 | |
| Weight: 152g | |
| Sales unit: piece | |
| Outer box: 50 | |
| Additional features | The power supply unit is not designed to work without load. |
| Technical data | Rated voltage [V]: 220-240 AC |
| Rated frequency [Hz]: 50 | |
| Colour: white | |
| Supply-cord type: constant-voltage | |
| Maximum power [W]: 1-30 | |
| Input voltage - PRI [V]: 220-240 | |
| Output voltage - SEC [V]: 24 DC | |
| Output current - sec [ma]: max 1250 | |
| Tc [°C]: 80 | |
| Maximum temperature Ta [°C]: 50 | |
| Short-circuit protection: 1 | |
| Possibility of installation on a normally flammable surface: yes | |
| IP class: 20 | |
| Class of protection against electric shock:1 | |
| Short-circuit protection: II | |
| Connection type: Terminal block | |
| Range of sections of wires used [mm2]: 0,5-1,5 | |
| Ambient temperature range to which the product can be exposed: 5÷25 |
